ILLUSTRATED
PARTS LIST

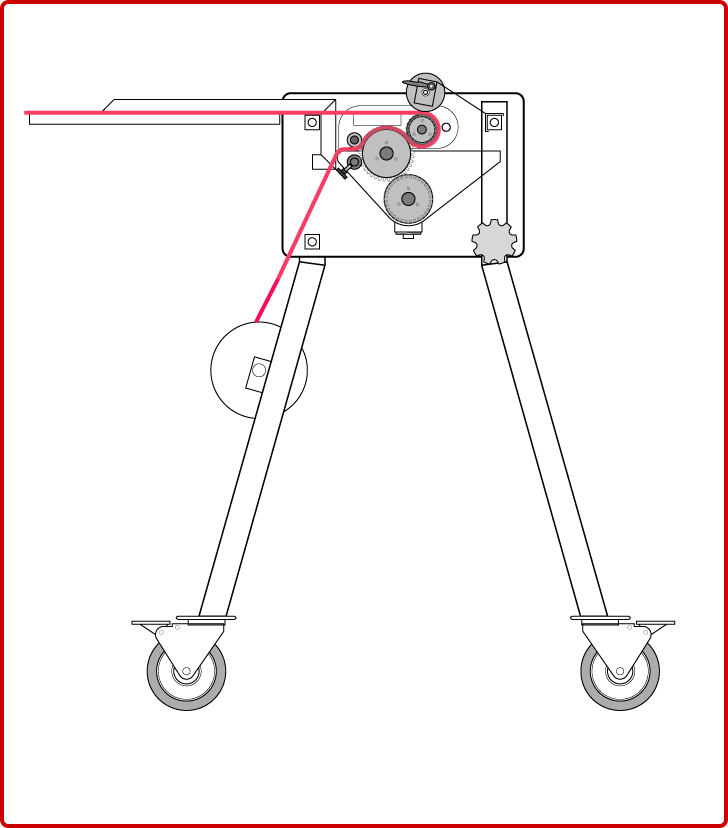

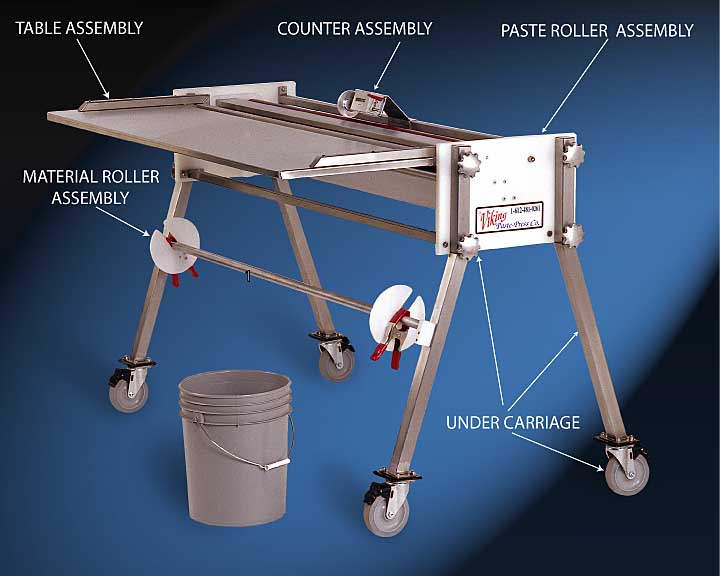

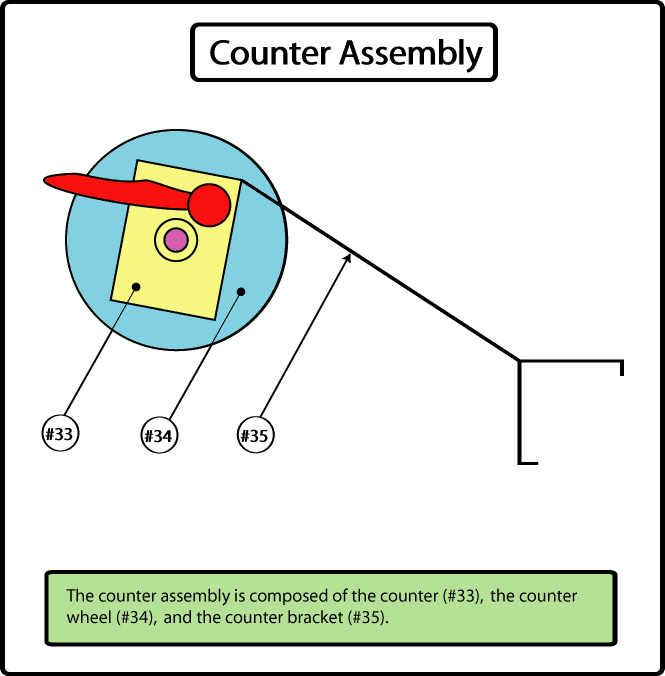

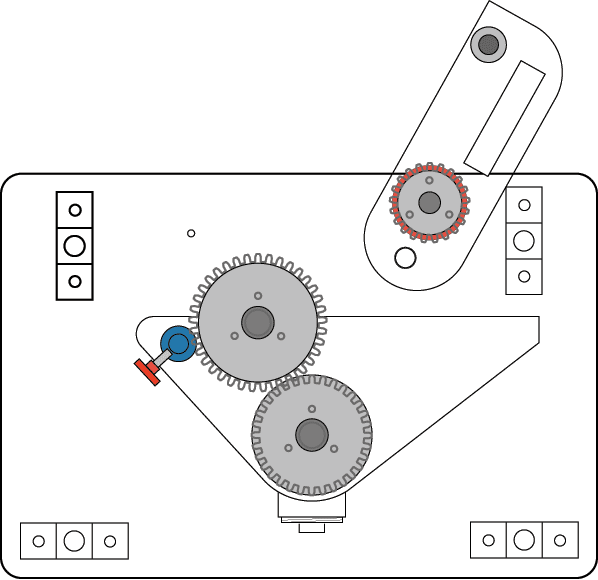

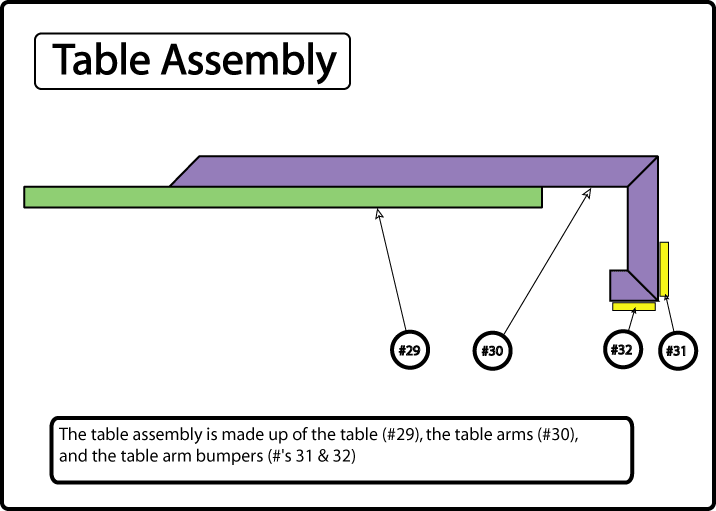

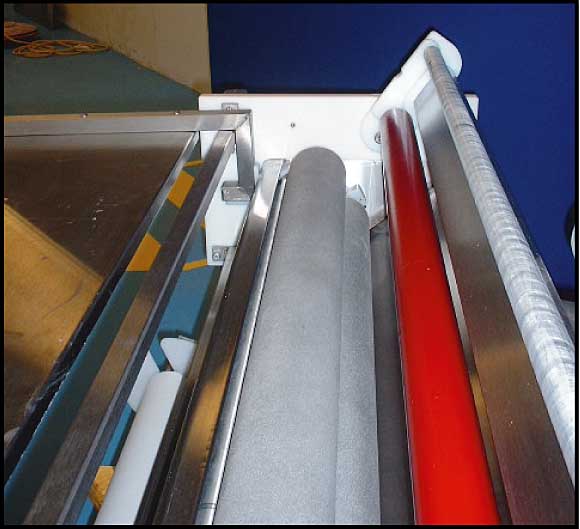

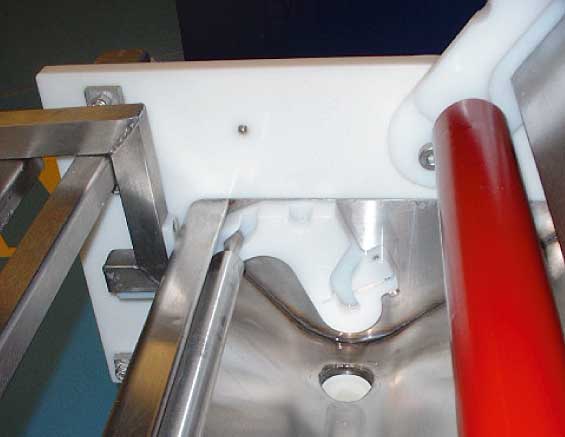

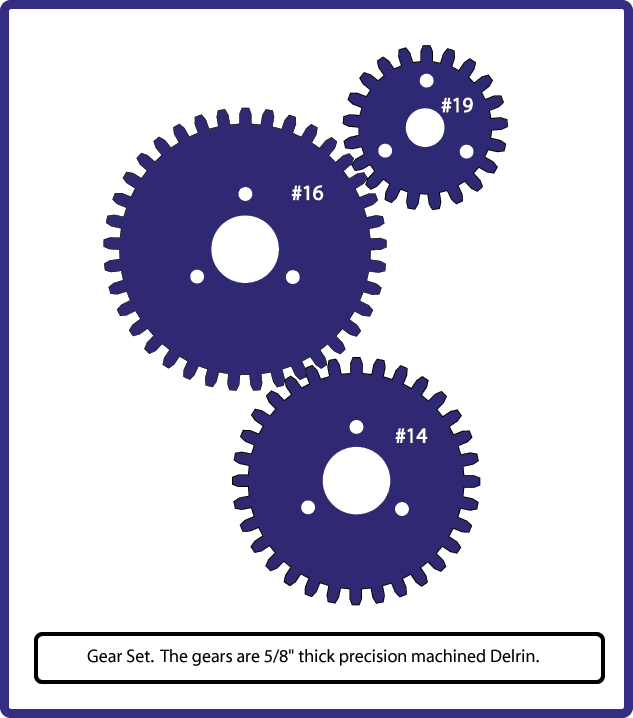

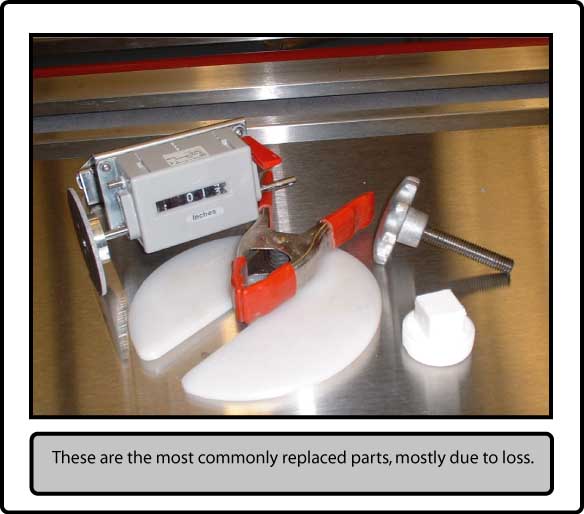

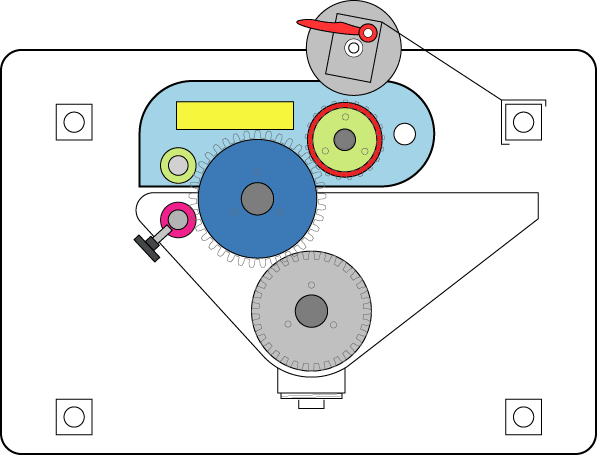

UNDER CARRIAGE Casters (4ea) Caster Bumpers (4ea) Legs (2 front) (2 back) Palm grip leg screws (8 ea) MATERIAL ROLLER ASSEMBLY Material roller (1 ea) Material roller saddle blocks (2 ea) Guide disc clamps (2 ea) ROLLER ASSEMBLY End Plate (2 ea) (L&R) Frame Spreader Bars (4 ea) (2 upper & 2 lower) Paste Pan Paste Roller Saddle Blocks (2 ea) (L&R) Paste Roller Saddle Block Adjustment Screw Paste Pickup Roller (1 ea) Paste Pickup Roller Gear (1 ea) Paste Delivery Roller (1 ea) Paste Delivery Roller Gear (1 ea) Doctor Roller (1 ea) Drive Roller (1 ea) Drive Roller Gear (1 ea) Pinch Roller (1 ea) Rocker Arm (2 ea) (L&R) Rocker Arm Spreader Bar (1 ea) Rocker Arm Pivot (2 ea) Detent Pin (2 ea) End Fine Adjuster Screws (2 ea) Center Fine Adjuster Screw (1ea) Center Adjuster Block (1 ea) Drain Plug TABLE ASSEMBLY Table Table Arms (2 ea) Table Arm Bumpers, long (2 ea) Table Arm Bumpers, short (2 ea) COUNTER ASSEMBLY Counter Counter Wheel Counter Bracket
